Foreign Keys

Foreign keys create relationships between tables with referential integrity. A foreign key field stores a rowId referencing a row in another table. The platform validates every write — you can't reference a row that doesn't exist.

Single FK (Many-to-One)​

The most common pattern — a field references one row in another table. Example: each product belongs to one category.

Table categories — row id: "electronics"

{ "name": "Electronics" }

Table products — row id: "iphone-16"

{
  "title": "iPhone 16 Pro",
  "price": 999,
  "category": "electronics"
}

category contains the rowId of a row in the categories table.

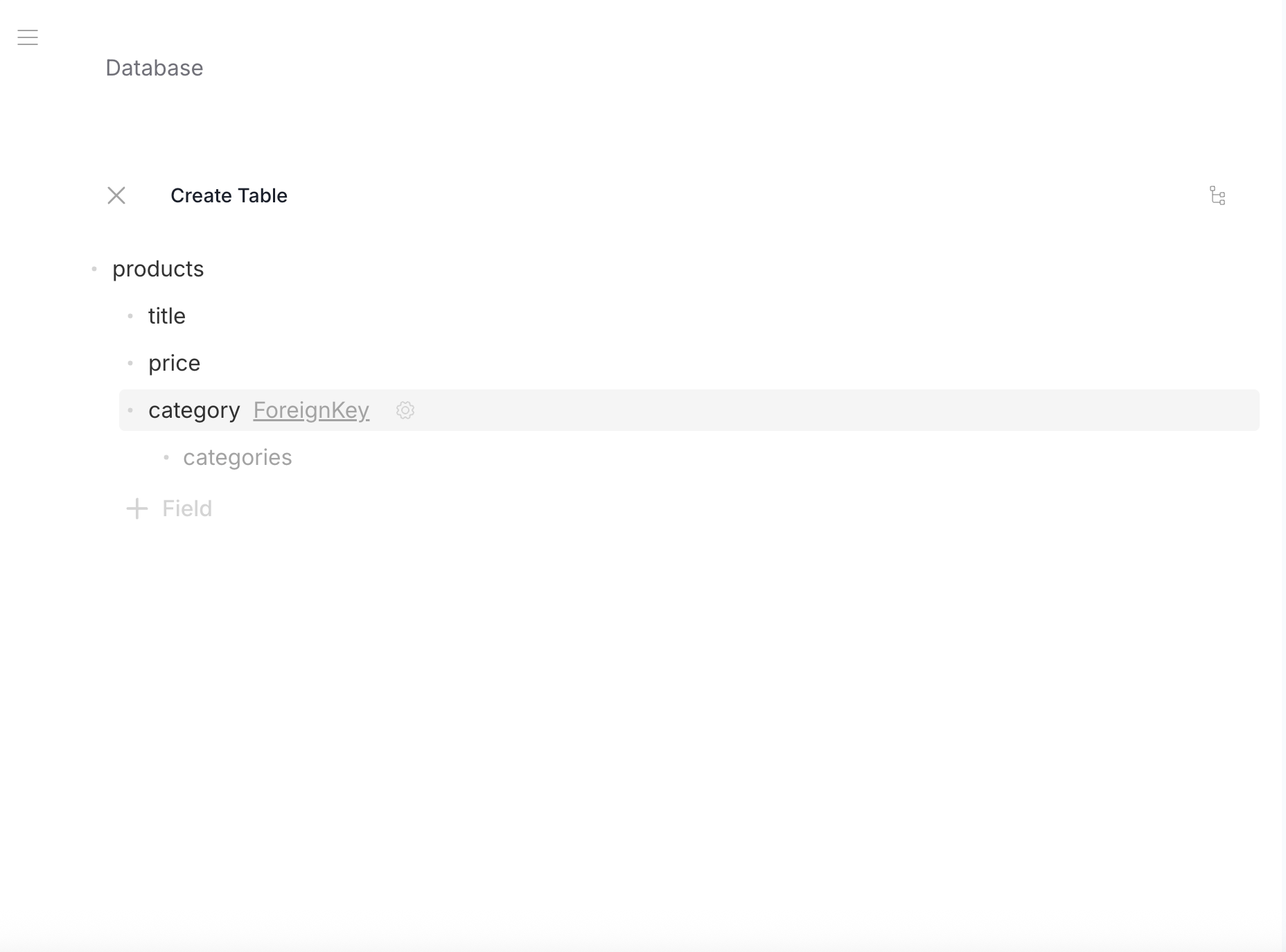

Schema Editor — foreign key field category pointing to categories table
Schema Editor — foreign key field category pointing to categories table

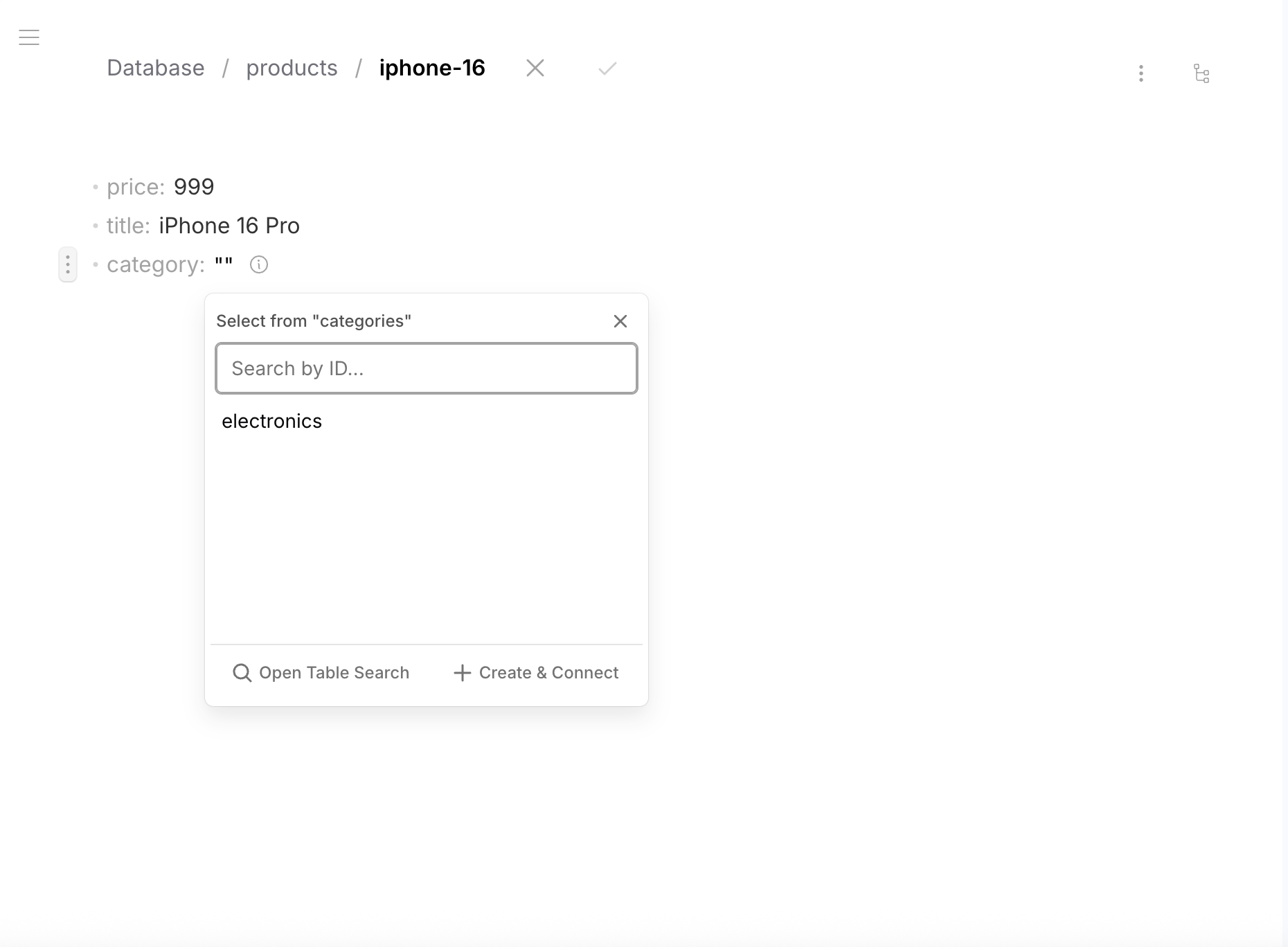

Row Editor — selecting a category from the referenced table with search
Row Editor — selecting a category from the referenced table with search

FK Array (One-to-Many)​

An array of FK strings — one row references multiple rows in another table. Example: a product has multiple tags.

Table tags — rows: "5g", "usb-c", "promotion"

{ "name": "5G" }

Table products — row id: "iphone-16"

{
  "title": "iPhone 16 Pro",
  "tags": ["5g", "usb-c", "promotion"]
}

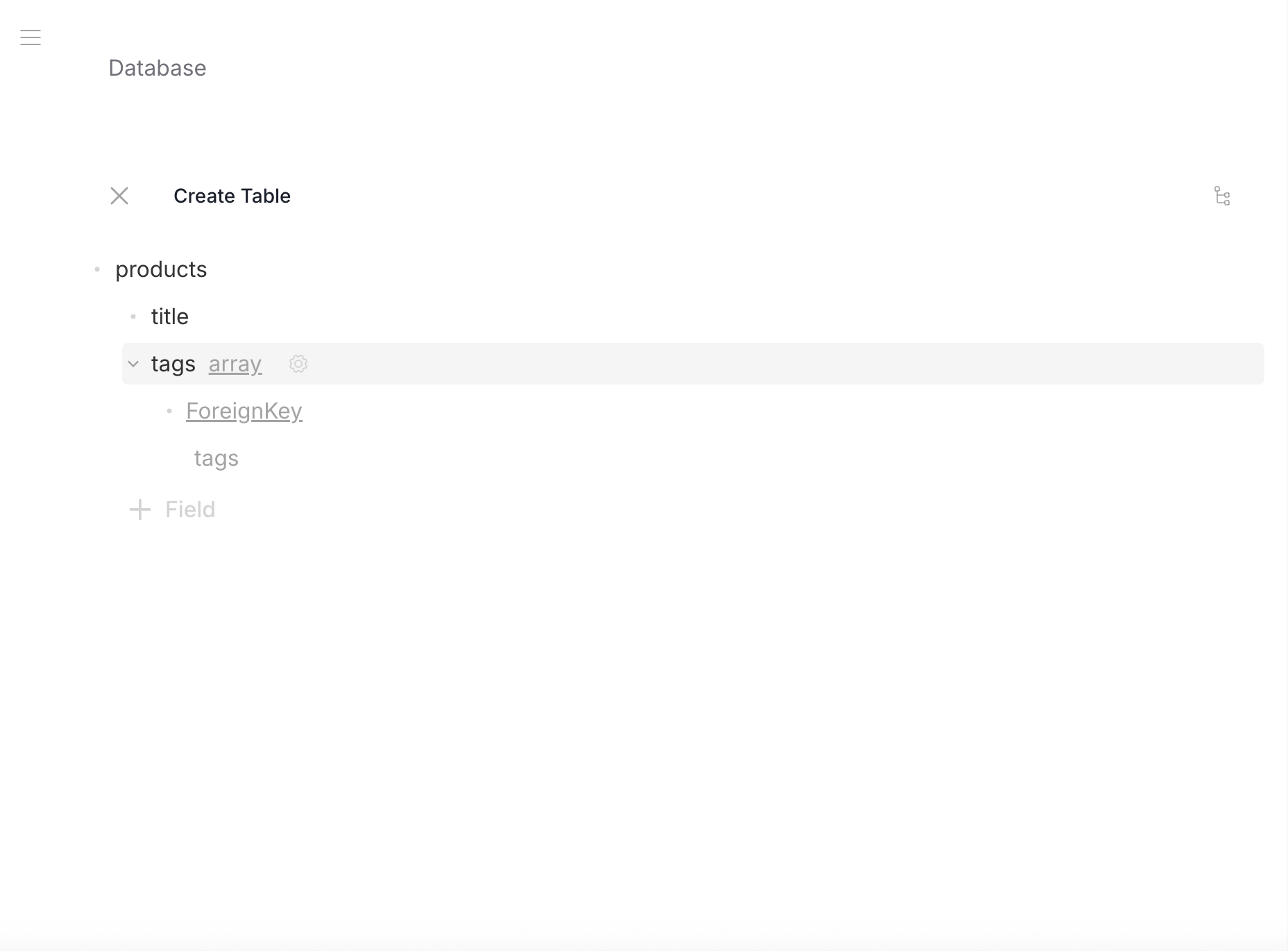

Schema Editor — tags array with ForeignKey items pointing to tags table
Schema Editor — tags array with ForeignKey items pointing to tags table

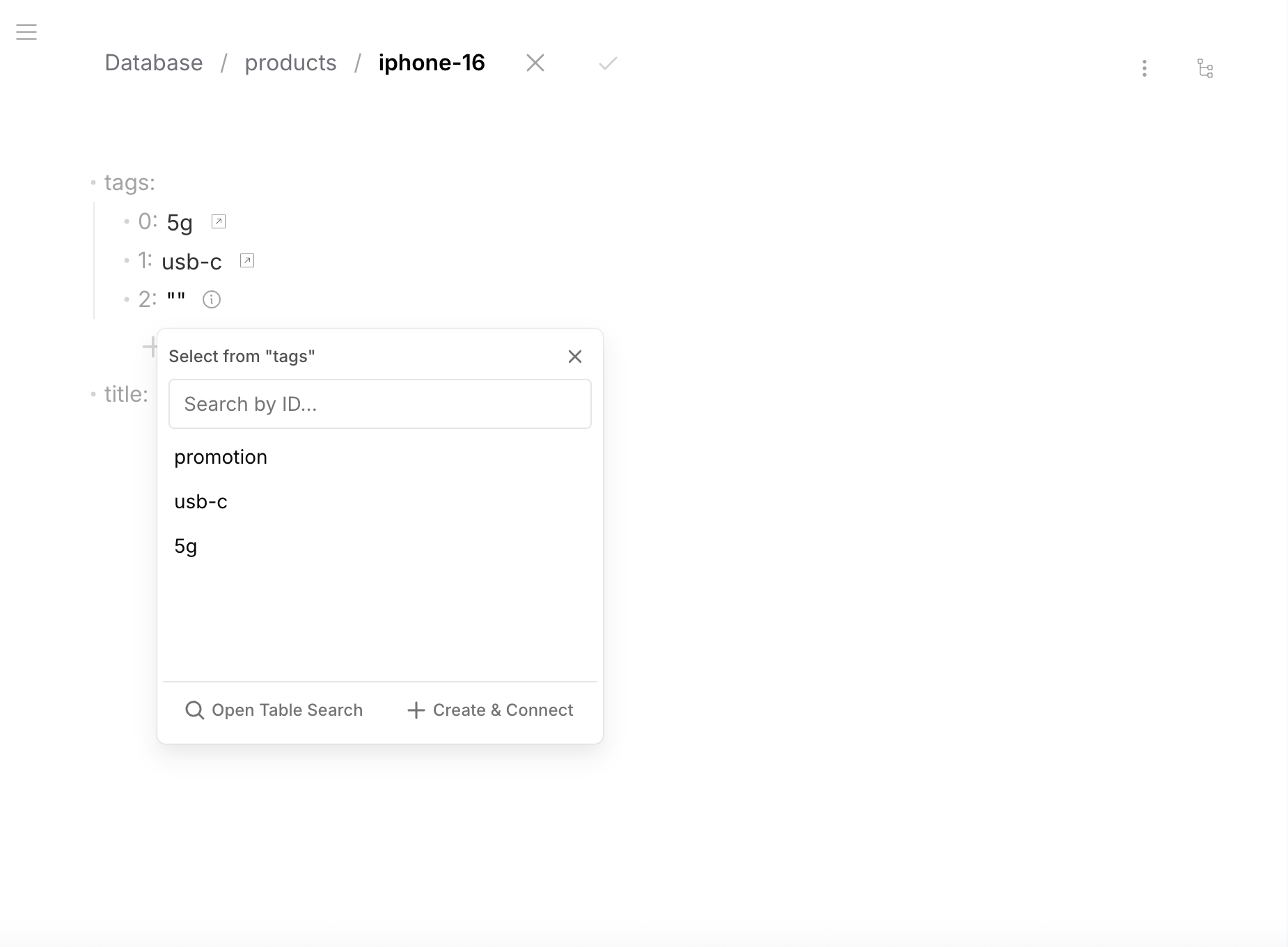

Row Editor — selecting tags from the referenced table, multiple FK values in array
Row Editor — selecting tags from the referenced table, multiple FK values in array

FK in Array of Objects​

Foreign keys inside objects within an array. Example: an order has line items, each referencing a product.

Table orders — row id: "ord-001"

{
  "customer": "Acme Corp",
  "items": [
    { "product": "iphone-16", "quantity": 10 },
    { "product": "macbook-m4", "quantity": 5 }
  ]
}

Each items[].product is a FK pointing to a row in the products table.

FK in Nested Objects​

Foreign keys inside nested objects (not arrays). Example: an article has metadata with author and reviewer references.

Table articles — row id: "getting-started"

{
  "title": "Getting Started",
  "metadata": {
    "author": "john-doe",
    "reviewer": "jane-smith"
  }
}

metadata.author and metadata.reviewer both reference rows in the users table.

Self-Relations​

Coming Soon

Self-referencing foreign keys (a table referencing itself) are currently in development. This will enable patterns like tree structures, parent-child hierarchies, and linked lists within a single table.

Limitations​

Foreign keys are non-nullable — every FK field must reference a valid row. Nullable/optional foreign keys are planned.

When adding a new FK field to a table with existing data, the default empty string will fail validation. Use one of these patterns instead:

  • New FK array — add a new array field; an empty array is valid (no references needed)
  • New array of objects with FK — add a new array of objects where one field is a FK; empty array = no references
  • Two-step migration — add the field as a regular string first, populate valid rowIds in existing rows, then change the field to a foreign key

Referential Integrity​

Revisium enforces referential integrity on every write:

OperationBehavior
Create/update rowFK value must be a valid rowId in the target table
Delete referenced rowBlocked — cannot delete a row that other rows reference
Delete referenced tableBlocked — cannot delete a table that other tables reference via FK
Rename rowAll FK values pointing to the old rowId are updated automatically
Rename tableAll FK declarations ("foreignKey": "old-name") in other schemas are updated

Cascade rename examples​

Rename row in categories: electronics → electronics-devices

products/iphone-16:  category: "electronics"  →  category: "electronics-devices"
products/macbook-m4: category: "electronics"  →  category: "electronics-devices"

Rename table: categories → product-categories

products schema:  "foreignKey": "categories"  →  "foreignKey": "product-categories"

API Resolution​

When you create an API endpoint, FK fields are automatically resolved in GraphQL queries — no configuration needed:

query {
  products {
    edges {
      node {
        data {
          title
          category {
            name
          }
          tags {
            name
          }
        }
      }
    }
  }
}
note

FK auto-resolution is GraphQL only. REST endpoints return raw FK IDs (the rowId string). To resolve relationships via REST, make a separate request using the returned ID.

Table Relations​

The Admin UI provides a visual map of all foreign key relationships between tables.

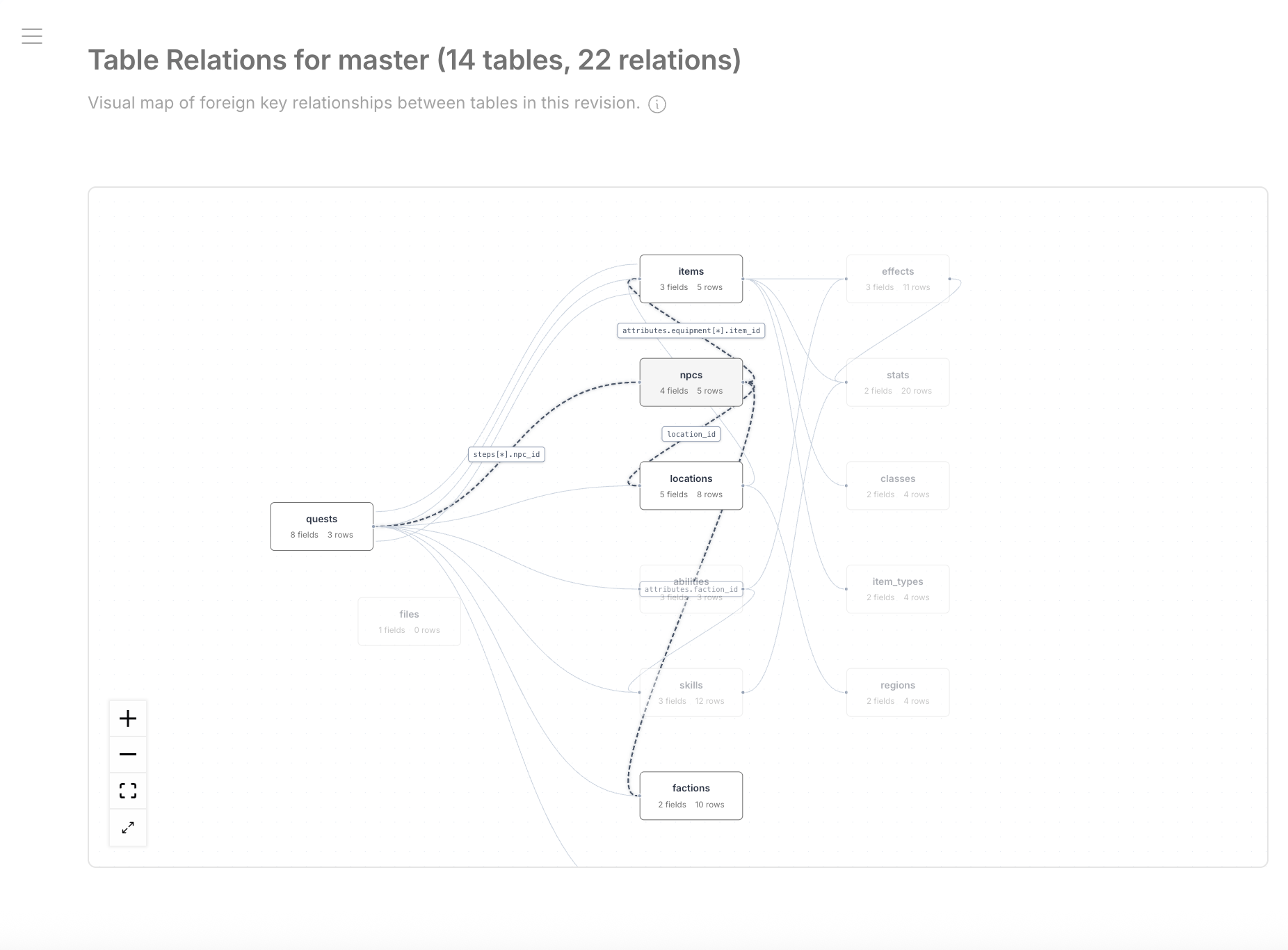

Table Relations — visual map of FK relationships between 14 tables with 22 relations
Table Relations — visual map of FK relationships between 14 tables with 22 relations
